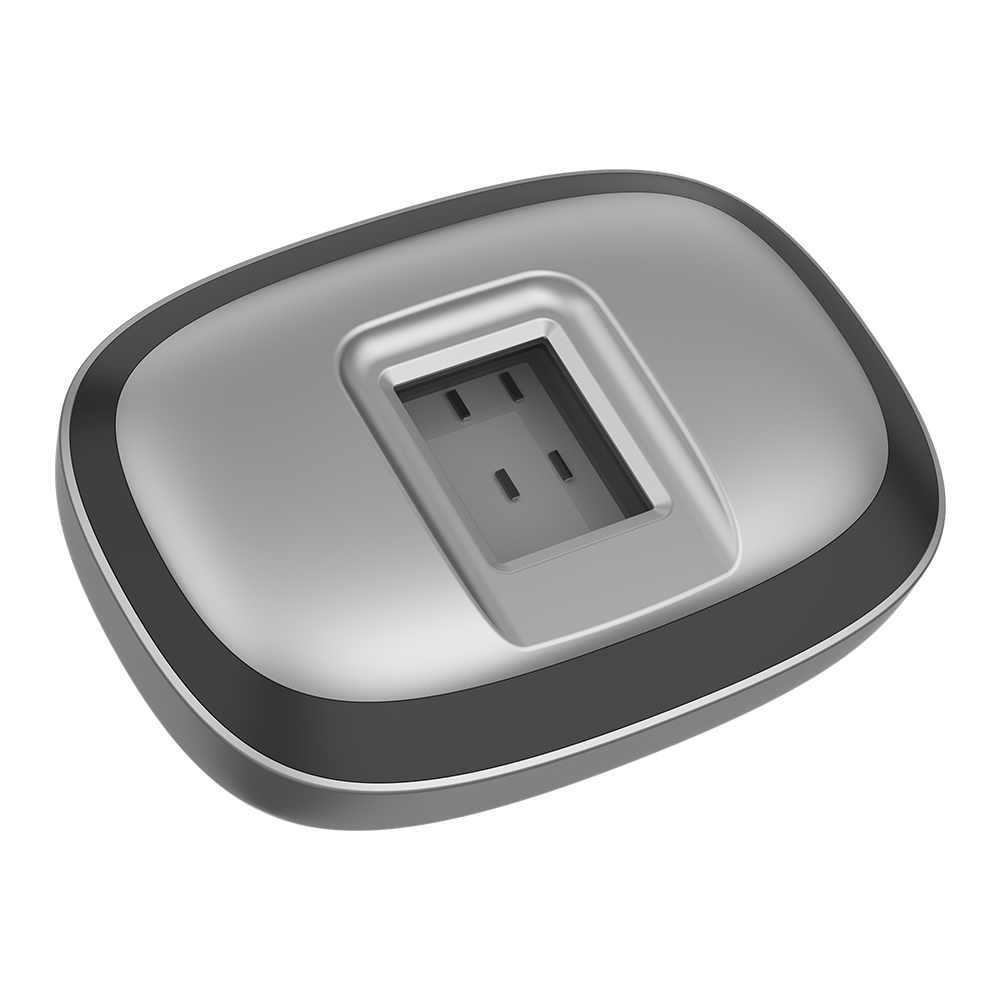

Product Name: BH103
- Detailed Description
Product Overview

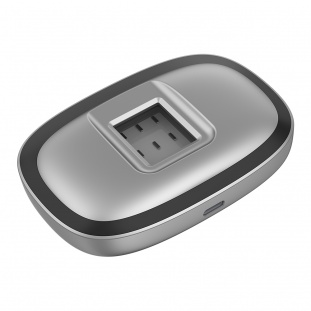

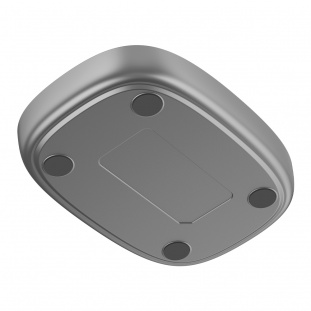

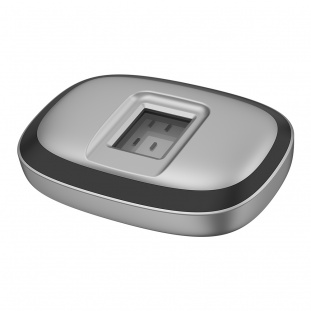

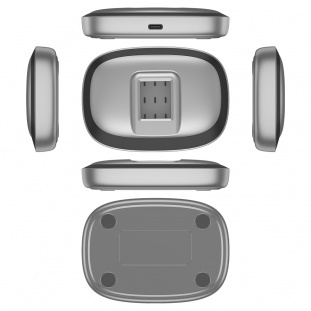

BH103 is a FAP30 Optical Fingerprint Reader which is FBI PIV certified. It supports TypeC interface for easy integration and it also compliant with international standard including ISO and ANSI support making it an idea solution to fulfill the needs in industrial design and other compact end products require fingerprint identification and authentication.
Features
BH103 is a FAP30 Optical Fingerprint Reader which is FBI PIV certified. It supports TypeC interface for easy integration and it also compliant with international standard including ISO and ANSI support making it an idea solution to fulfill the needs in industrial design and other compact end products require fingerprint identification and authentication.
Features
High Image Quality: FAP30 optical sensor with superior image quality
Correction&Authentication: Support auto correction and 360 degree rotation authentication
Easy to Develop: TypeC interface, supports OTG
International Standard: ISO19794-4, ANSI-381, JPEG2000,RAW,BMP and WSQ supported
SDK Support: Windows,Android,Linux and HTML
Physical Parameters
Physical Parameters
Capture Mode: Optical sensor
Platen Size: 26.4*21.4 mm
Sensing Area: 25.4*20.32 mm
Fingerprint Image Size: 400*500 pixels
Image Resolution: 500 dpi
Gray level: 256level
Communication Mode
Communication Mode
Communication Interface: USB/OTG
Operation environment
Operation environment
Work Voltage: DC5V+5%
Work Current: <200mA
Temperature: -10°C-50C
Humidity: 20%-90% R.H
Supported OS
Windows XP /7 /8 / 10, Android, Linux, Embedded
Supported OS
Windows XP /7 /8 / 10, Android, Linux, Embedded
