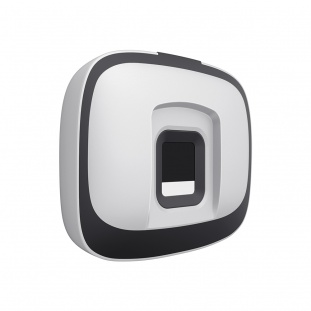

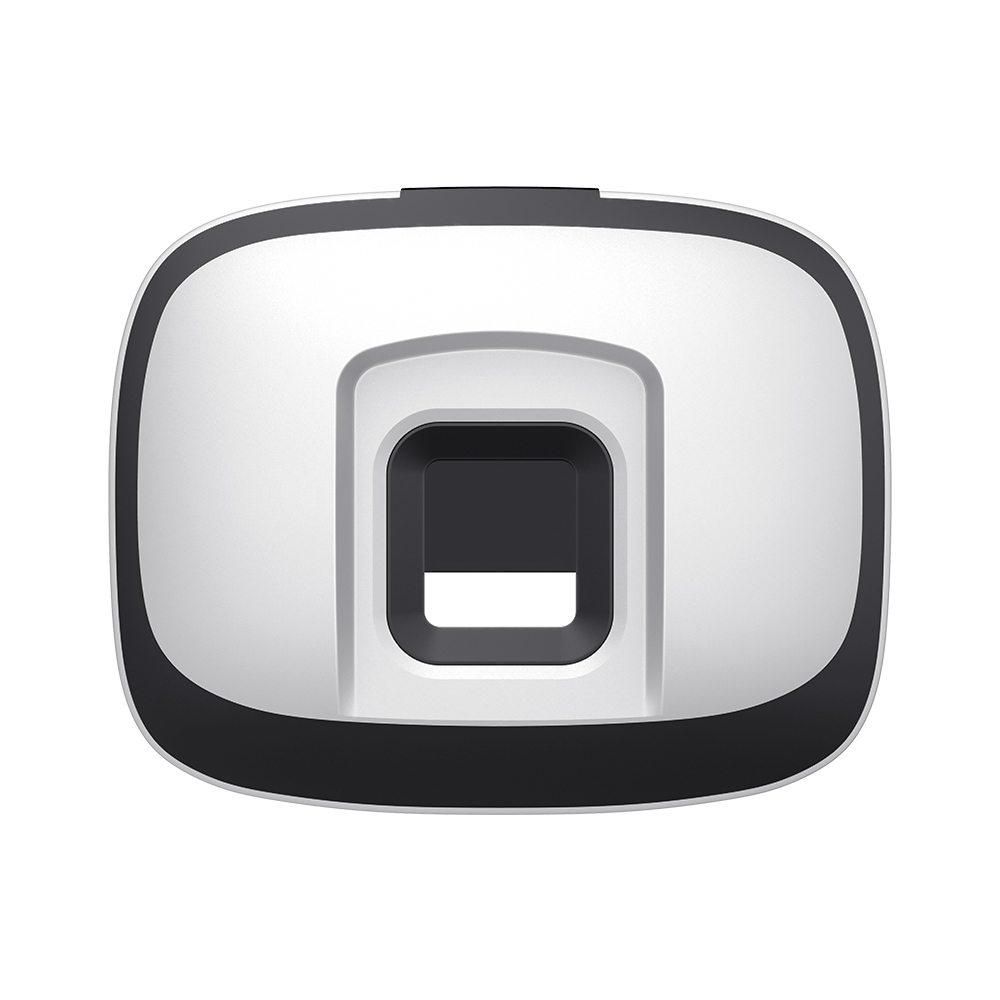

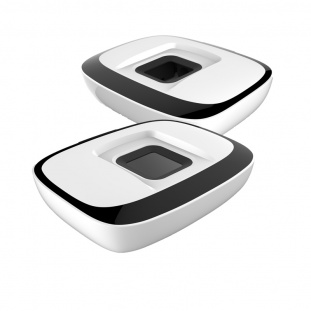

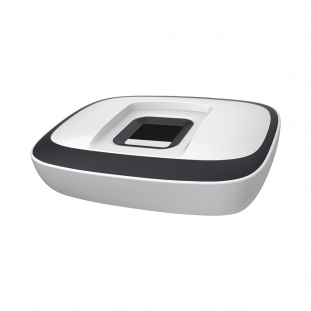

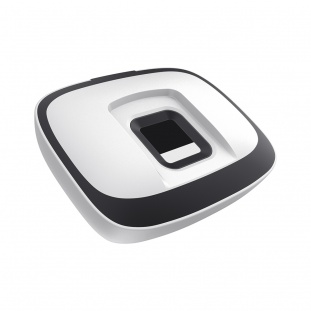

Product Name: BH102

BH102 is the Rugged and Durable Optical FingerprintReader which is listed in FBI PIV certification. It supportsUSB interface for easy integration and it also compliant

with international standard including ISO and ANSI sup-port,making it an idea solution to fulfill the needs in indus-trial design and other compact end products requirefingerprint identification and authentication.

Detailed Description

Product Overview
BH102 is the Rugged and Durable Optical Fingerprint Reader which is listed in FBI PIV certification. It supports USB interface for easy integration and it also compliant with international standard including ISO and ANSI support, making it an idea solution to fulfill the needs in industrial design and other compact end products requirefingerprint identification and authentication.

Features

High Image Quality: Optical sensor with superior image quality

Correction&Authentication: Support auto correction and 360 degree rotation authentication

Easy to Develop: USB Support

International Standard: ISO19794-2, ISO19794-4, ANSI-378 and WSQ supported

SDK Support: Windows, Android, Linux and HTML

Physical Parameters
Capture Mode: Optical sensor

Platen Size: 28*30 mm

Sensing Area: 19*21.03mm

Fingerprint Image Size: 256*360 pixels

Image Resolution: 508 dpi

Gray level: 256level

Communiction Mode

Communication Interface: USB/OTG

Operation environment
Work Voltage: 3.7V

Work Current: <200mA

Temperature: -10°C-60°C

Humidity: 10%-93% R.H

Supported OS

Windows XP /7 / 8 / 10, Android, Linux, Embedded
