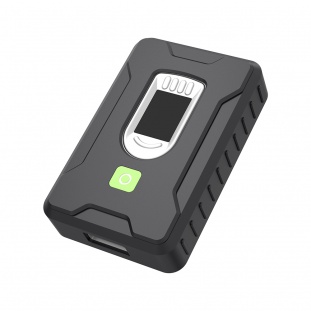

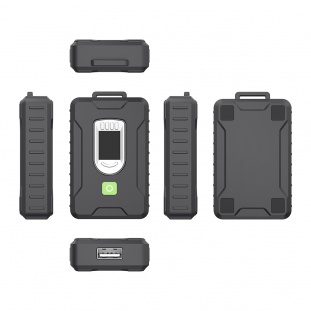

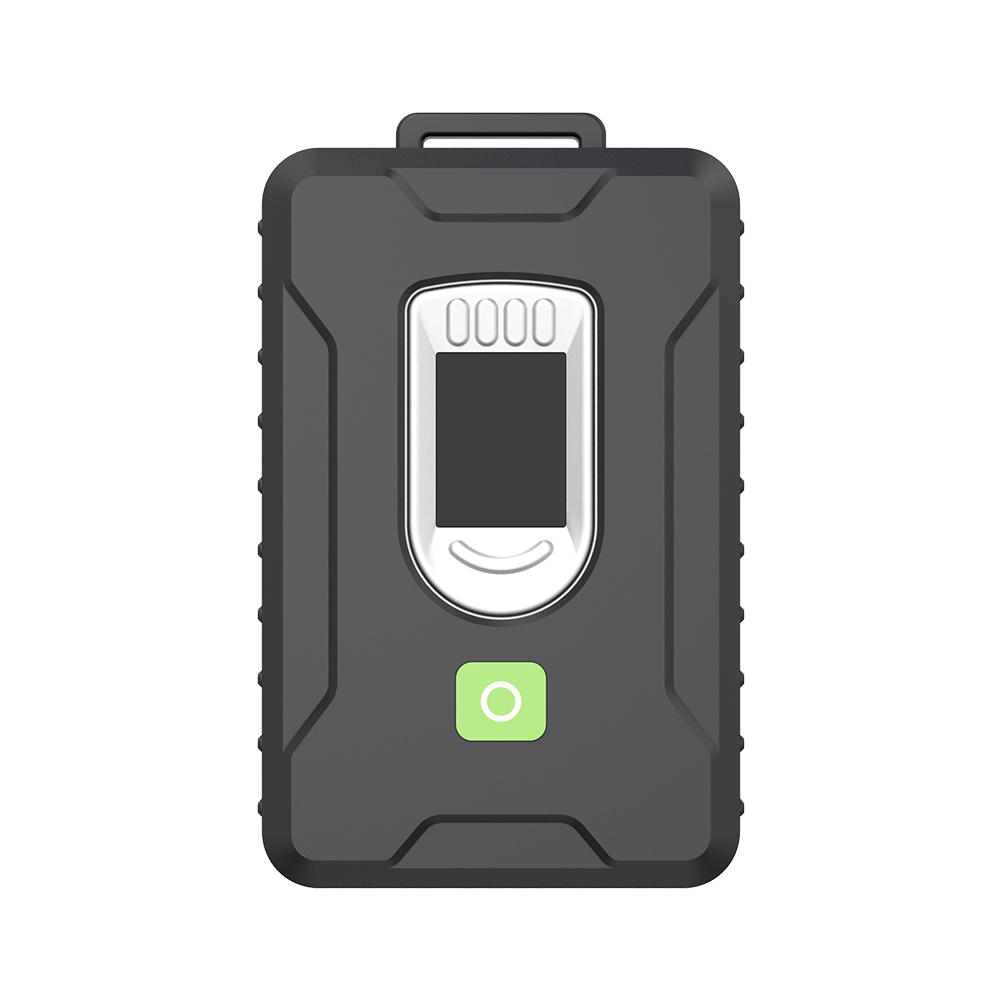

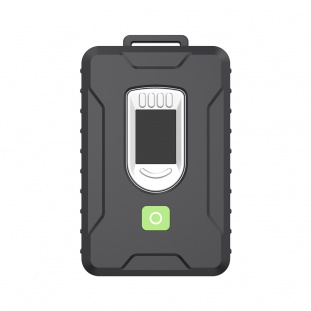

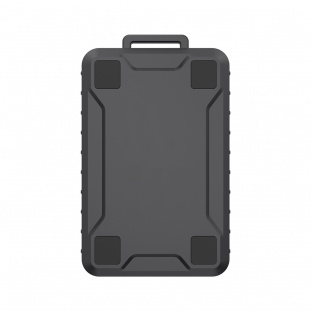

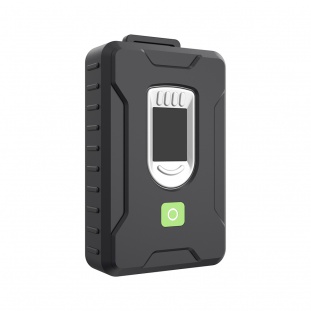

Product Name: BH101
Image Size: 208x288pixel
Resolution: 508dpi
Image format: RAW, BMP, WSQ
Template type: ISO19794-2/4,ANSI-378
USB Interface
Resolution: 508dpi
Image format: RAW, BMP, WSQ
Template type: ISO19794-2/4,ANSI-378
USB Interface
Support Android /Windows
Used for Portable or Desktop Application
Used for Portable or Desktop Application
- Detailed Description
Product Overview
BH101 is the Complete Capacitive Fingerprint Readerwith Algorithm MCU built-in. Compliant with internationalstandard including ISO and ANSI support, it is applicablefor many different applications and industrial whichdemand reliable, fast and convenient identification andauthentication.
Features
BH101 is the Complete Capacitive Fingerprint Readerwith Algorithm MCU built-in. Compliant with internationalstandard including ISO and ANSI support, it is applicablefor many different applications and industrial whichdemand reliable, fast and convenient identification andauthentication.
Features
Strong Adaption： adaption for wet/dry fingers
SDK Support： Windows,Android, Linux and HTML
High Image Quality： Capacitive sensor with superior image quality
International Standard： ISO19794-2, ISO19794-4, ANSI-378 and WSQ supported
Authentication&Correction： Support auto correction and 360 degree rotation authentication
Physical Parameters
Physical Parameters
Capture Mode： Capacitive sensor
Platen Size： 15.3*11.40 mm
Sensing Area： 14.4*10.4mm
Fingerprint Image Size： 208*288 pixels
Image Resolution： 508 dpi
Gray level： 256level
Communication Mode
Communication Interface： USB/OTG
Operation environment
Temperature： -20°C-85°C
Communication Mode
Communication Interface： USB/OTG
Operation environment
Work Voltage： 3.3V
Work Current： 50mATemperature： -20°C-85°C
Humidity： 40%-80% R.H
Supported OS
Windows XP /7 /8/ 10, Android, Linux, Embedded
Supported OS
Windows XP /7 /8/ 10, Android, Linux, Embedded
